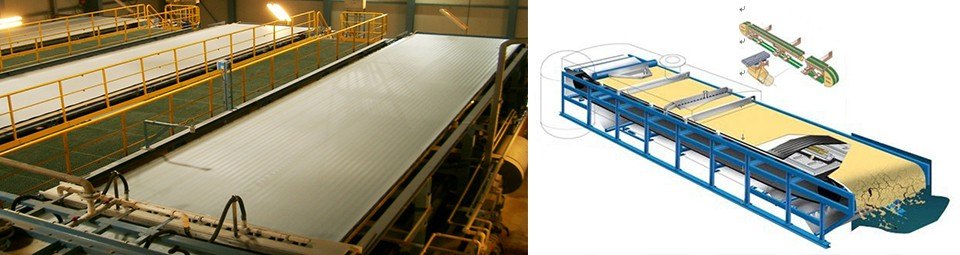

Vacuum Filter Belt

We innovative solutions for separation, purification, filtration of a suspension or powder in specialty chemicals, zeolites and catalysts, silica, colors, pigments and lacquers, polymers, alumina, magnesium oxide, BPA,  and a broad range of other products.
610
610D正网

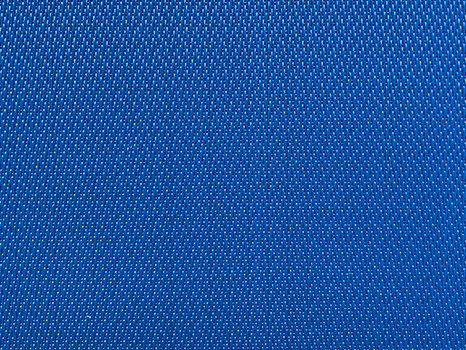

Mono×Mono Series

This kind of belts are totally woven by  monofilament so the belts have a stable surface and very easy to clean. The belts are mainly used in chemical industry like phosphorus process. The benefits of belts:
- Good chemical stability
- Perfect abrasion performance
- The outstanding permeability
- Well-made clipper seam lead to a long service time

623网
623Ac

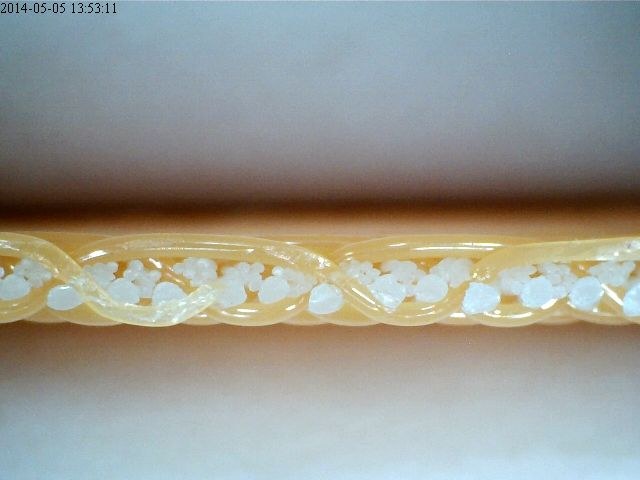

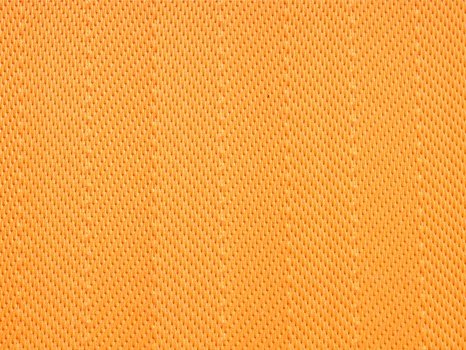

Mono×Mono Series

The 623A is a special type we researched who have large equipments which filtering mining slurry and need a long service time. This kind of woven structure are praised by all clients.
- Good chemical stability
- Perfect abrasion performance
- The outstanding permeability and easy to clean
- Well-made clipper seam could suffer bad usage for long time
- Stable surface and easy to rectify
623网
617正网

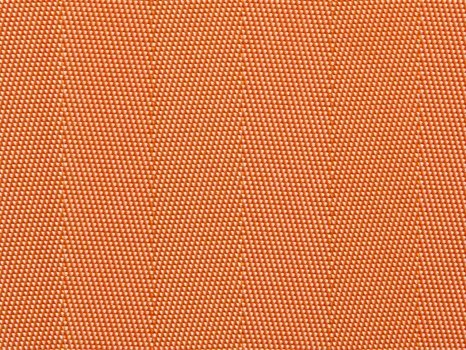

Multifil Series

Woven by mono×multifilament give consideration to filter fineness and stability. The belt can be used with large size. Mainly used on FGD desulfurization. The benefits of belts:
- Good filter fineness
- Perfect abrasion performance
- Good chemical stability
- Stable surface and easy to rectify
- Easy to washing
620正网
dl120

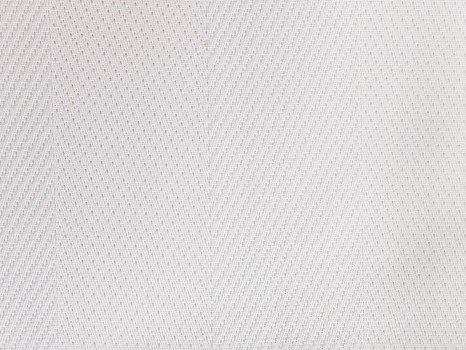

Double layer series

Fine filter fabric have a good permeability, the sturdy supporting fabric make the belt much stable. The double layer structure is used widely in most industry. This unique filter media offers the following advantages:
Best permeability due to optimal fabric design
Wide range of pore sizes (8 – 200 µm)
- Optimum particle retention, due to special pore structure
Excellent cake release, resulting from the special surface treatment of the fabrics
There are more styles with different material can supply, just contact us to help you find the suitable belts.We also provide OEM/ODM service to meet your unique requirement.

Seam Type

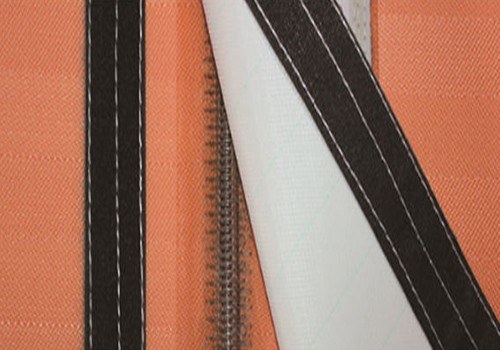

clipper seam with flap

clipper seam with flap

clipper seam1

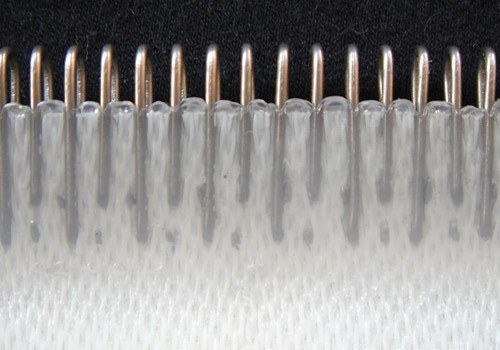

clipper seam

clipper seam2

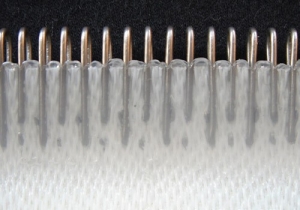

flat clipper seam
