anti-staic air filter cartridge

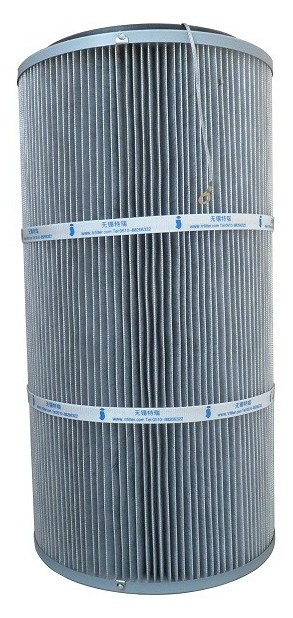

Anti-static Series

Advantage
  • Polyester coating with import ALU material
  • Excellent resistance against electric conductance
  • Good chemical resistance
  • Excellent  dust release
Applicable temperature
Moisture 90°C, Dry 120°C
spun bonded polyester air filter cartridge

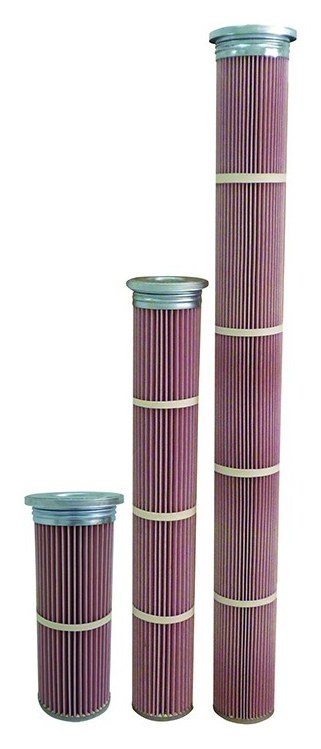

Water Proof and Anti-oil Series
Advantage
  • Perfact water proof and anti-oil performance
  • Long service time
  • High filtration efficiency
Application
wet oily dust with big dust concentration, it has better efficiency to dry large particles of dust.

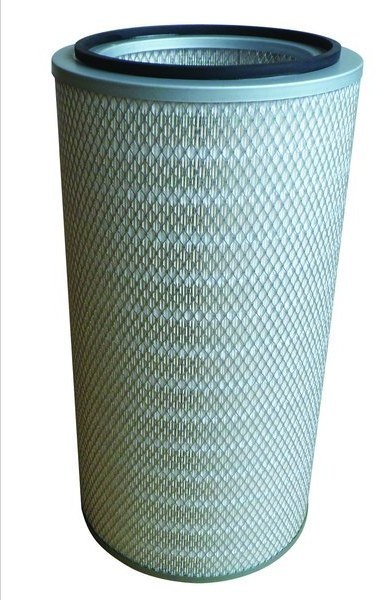

Nano flame retardant filter cartridge
Flame Retardent Series
Advantage
  • Wider Pleat width
  • Polyester+ Flame retardant material
  • Flame Retardant grade for EU Standard
  • High filtration efficiency , Easier cleaning
  • Bigger Ventilatory Volume
  • Easy installation and maintenance , more long service life.
Application
welding , cutting , grinding and other operating conditions has spark.

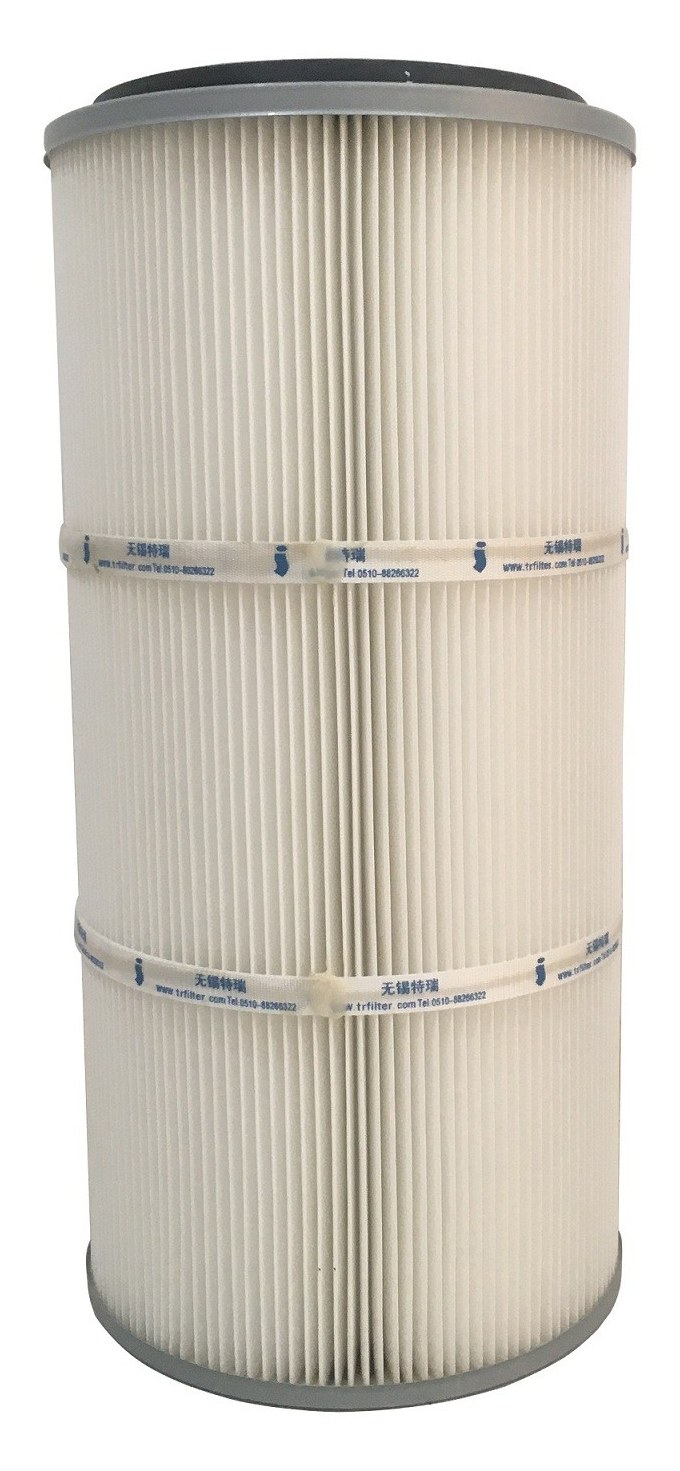

spun bonded polyester air filter cartridge
Spun Bonded Series
PET
Advantage
  • Imported long fiber polyester with tight pore structure
  • Excellent moisture resistance and dust release properties
  • High-wearing feature improve the airflow
  • Galvanized Top cap & inner frame ,,rust resistance
  • Specialty chlorine rubber gasket to ensure airtight sealing.
Application
Suitable for filtration of the fine dust in plastic , Spray powder , sand blast , pigment and wood industries.

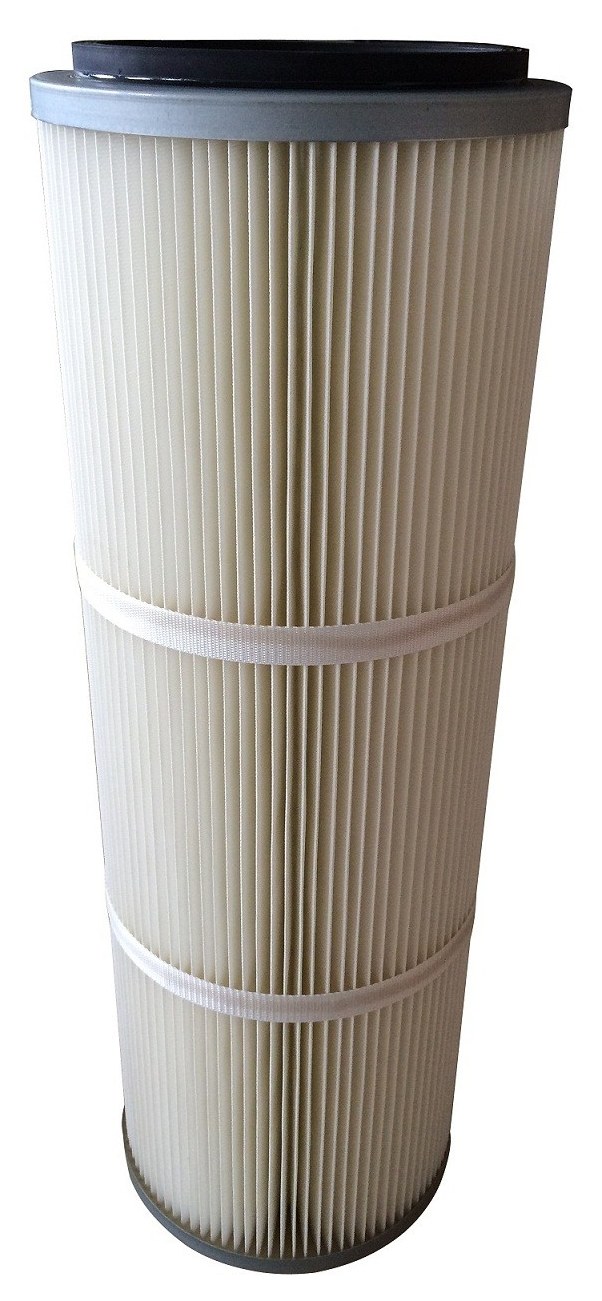

polyester air filter cartridge
Spun Bonded Series
PET Coated with PTFE
Advantage
Imported PTFE membrane helps meet EPA requirements (PM2.5 , MACT, NESHAP) and will reduce Total cost of Ownership with :
  • Reduced emissions (PM10, PM 2.5 and sub-Micron PM), filter efficiency :99.99%+
  • Longer service life, can be use 2-3 years under general working temperature
  • Aids in recovery from upset conditions such as moisture , boiler tube leaks , etc.
  • Excellent chemical corrosion resistance, provide a Chemical barrier to particulate matter
  • higher throughput capabilities reduce capital costs as a smaller dust collector can match the dust collection demand.
Application
Filtration of very fine dust types Welding fume, Shot casting, Pharmaceutical, Cement, Tobacco, Textile & others.
zuheA2-SAM

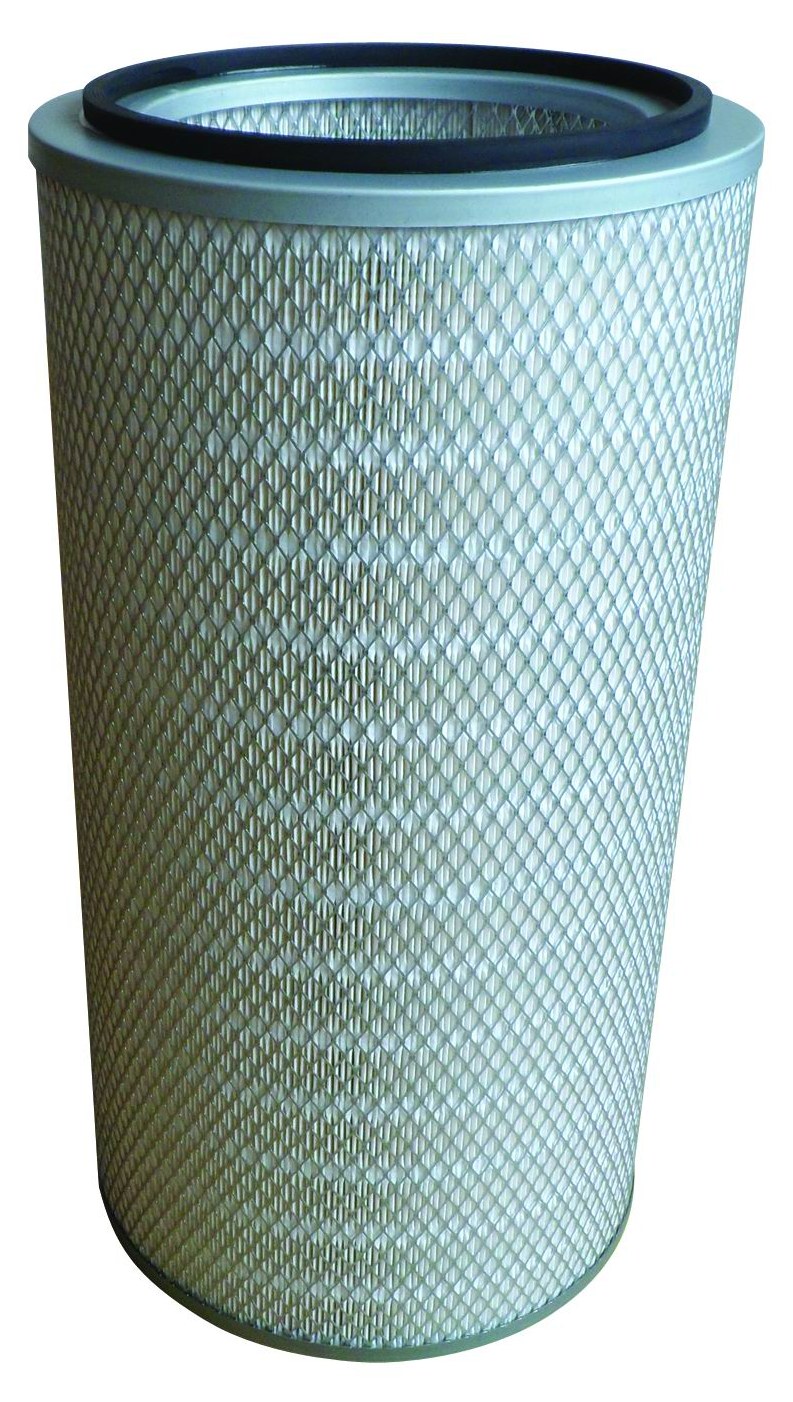

Cellulose Series
Advantage
  • Imported cellulose fiber or synthetic fiber for base media
  • excellent fiber efficiency
  • Wide pleated design,large filtration surface
  • Galvanized cap and rhombus inner mesh, good rust resistance,allows good airflow.
  • Specialty chlorine rubber gasket to ensure airtight sealing.
Application
gas turbine,compressor,sand blast,tobacco,ash,dust and others.
1midangefu
Pulse Pleated Series
ETR Bottom Loaded
 Our Bottom Loader Pleated Bag cartridge is installed from the dirty side using a soft polyurethane top cap.


ETR standard structure
Top cap:                         Molded Polyurethane (PU)-soft
Inner mesh:                    Galvanized steel / Stainless steel
Closed bottom cap        Metal / Molded Polyurethane (PU)-soft
Outside straps:               Glued or ultrasonic weld strap
Filter media:                   100% filament spinning spun
                                       bonded polyester
Operating temp:            130

ApplicationIt is suitable for air filtration of dust and fumes from cement, metal/aluminum, food & beverages, wood work, chemicals, powder coating, plasma/laser cutting, sand blasting, textiles, welding and casting.
UTR-top-lo
Pulse Pleated Series
UTR Top Loaded
 UTR Top Loader Pulse pleated filter cartridge provides an alternative to conventional filter bags providing increased air flow. The top loader cartridges can be installed in existing bag house dust collectors by way of easy clean side installation.

UTR standard structure
Top cap:                          Molded Polyurethane (PU)-soft
Sealing ring:                    Rubber or good-grade silicone
Inner mesh:                     Galvanized steel or stainless steel
Outside straps:                Glued or ultrasonic weld strap
Closed bottom cap:        Molded Polyurethane (PU)-soft
Filter media:                    100% filament spinning spun
                                        bonded polyester
Operating temperature:  107

Optional after-treatment
PTFE, anti-static, waterproof and anti-oil treatment.

Application
It is suitable for air filtration of dust and fumes from cement, metal/aluminum, food & beverages,
wood work, chemicals, powder coating, plasma/laser cutting, sand blasting, textiles, welding and casting.
top loaded pulse filter cartridge
Pulse Pleated Series
MTR Steel Top Loaded
 MTR Steel Top loaded pulse pleated filter cartridge is suitable for high temperature applications such as aluminum smelters and furnaces. This clean side removal cartridge is mounted with a snap ring and provides an alternative to filter bags. It can be installed in existing bag house dust collectors.

MTR standard structure
Top cap:                            Galvanized steel
Snap ring:                          Needle felt
Inner mesh:                        Galvanized steel / stainless steel
bottom cap:                       Galvanized steel / stainless steel
Outside straps (optional):  High temp.Ryton
Potting compound:            High temperature polyurethane
Filter media:                       100% filament spinning spun
                                            bonded polyester
Operating temp:                 130

Optional after-treatment
PTFE, anti-static, waterproof and anti-oil treatment.
weibiaoti

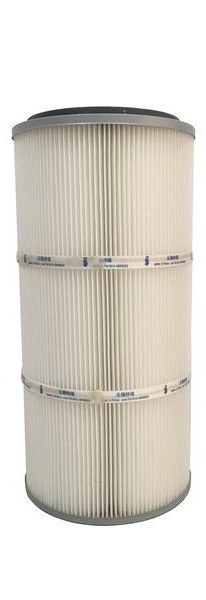

High Temperature Series
HTR PPS/ NOMEX
PPS high temperature pleated filter cartridge:
 PPS (Ryton) filter material from TOYABO and TORAY,
PPS high temperature filter media
Top and bottom with galvanized and carbon steel
Unique high temperature resistance glue
Good cmenical resistance
The highest operating temperature:190Degree


NOMEX high temperature pleated filter cartridge:

NOMEX high temperature filter media
Top and bottom with galvanized and carbon steel
Unique high temperature resistance glue
The highest operating temperature: 232Degree


Optional after-treatment:
PTFE
oval air filter cartridge
Oval Air Filter Series
It provides up to 25 percent more filtration air flow than other same-sized cartridge. Shorter and stiffer filter pleats help minimize dust entrapment simplify filter cleaning. By reducing the height of the pleats from the standard 2inches to 1.5inches, the pleat wall is less likely to collapse or bend, which can encapsulate dust and prevent it's expulsion. Meanwhile cost was reduced.
Oval-shaped cartridge filters have fewer areas of high velocity, resulting in a lower potentially for media abrasion and increased filter life.
oval
Advantage
  •  Lower initial cost per cubic foot of air per minute (cfm)
  • Higher efficiency—cleaner air
  • Lower pressure drop—greater energy savings
  • Fewer filter changeouts
  • Reduced filter disposal cost
  • Easy system setup
  • Less maintenance
